Scribe marks on lapjoints, extra information. 737-2/3/4/500

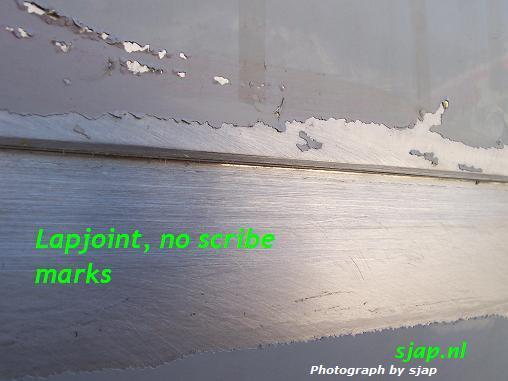

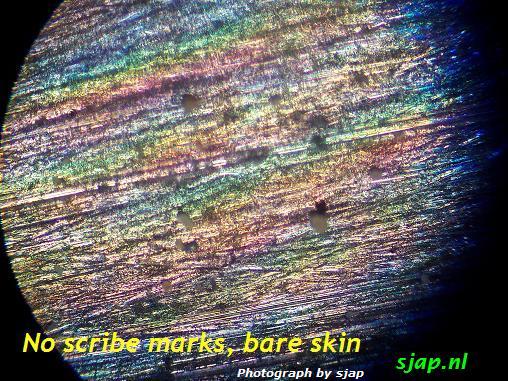

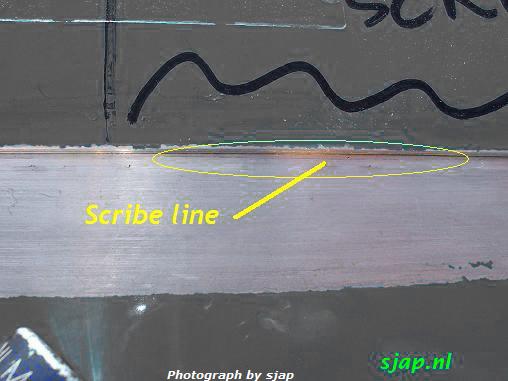

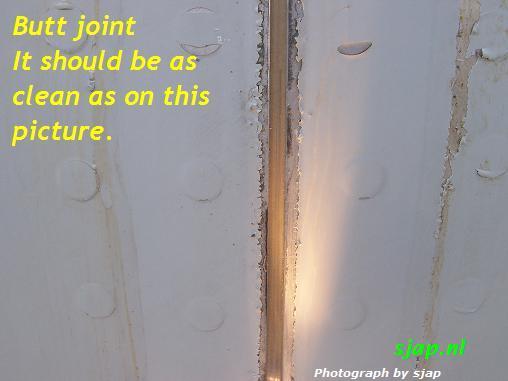

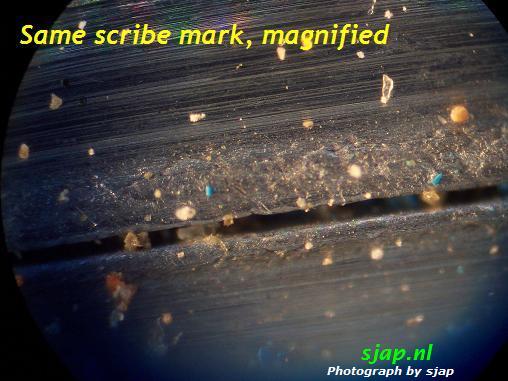

When you have to inspect a fuselage lapjoint or butt joint because of SB 737-53A1262, finding scribe marks can be a very difficult job. If magnified, the whole fuselage looks like there are scribelines everywhere. Therefore always use the magnifying glass as recommended and use an optical micrometer to ensure you find real scribe marks. Some pictures are made to help you recognize scribe marks and to see how it looks like through an optical micrometer. Photo’s are made with a normal digital camera, not airline / company related. Use these picture for information only.

> FOR INFORMATION ONLY. UNCONTROLLED DATA !. uses cookies to use the content and ads for functions to analyze website-traffic. also shares information about your usage on this site with our partners for social media, ads and analysis. By continuing to use this site, you agree to the use of cookies. More information
