Technical terms to describe inspection-findings

Arced:

Visible effects (burn spots, fused metal) of an undesired electrical discharge between two electrical connections.

 Battered:

http://www.sjap.nl/battered.jpg

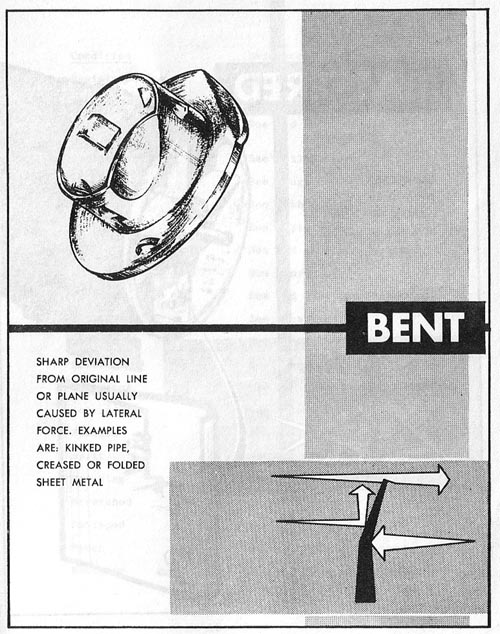

Bent:

http://www.sjap.nl/bent.jpg

Binding:

Restricted movement such as tightened or sticking condition resulting from high or low temperature, foreign object jammed in mechanism, etc.

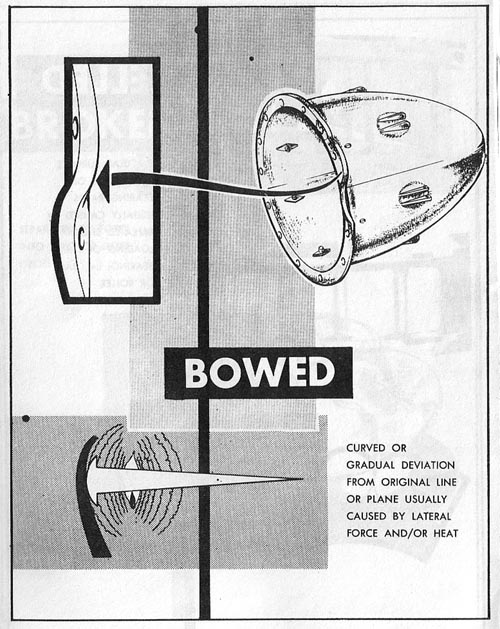

Bowed:

http://www.sjap.nl/bowed.jpg

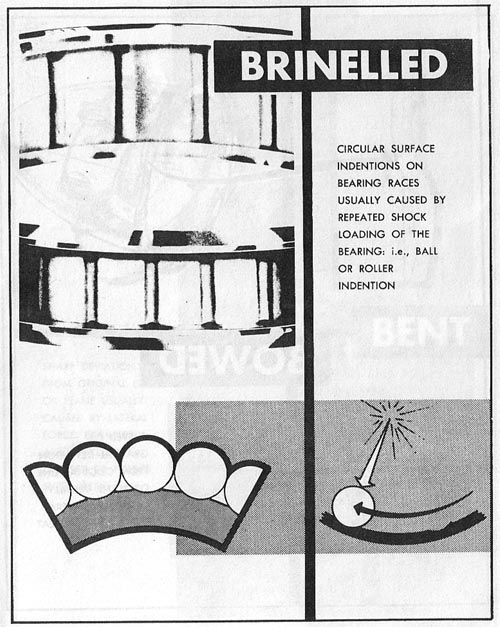

Brinelled:

http://www.sjap.nl/brinelled.jpg

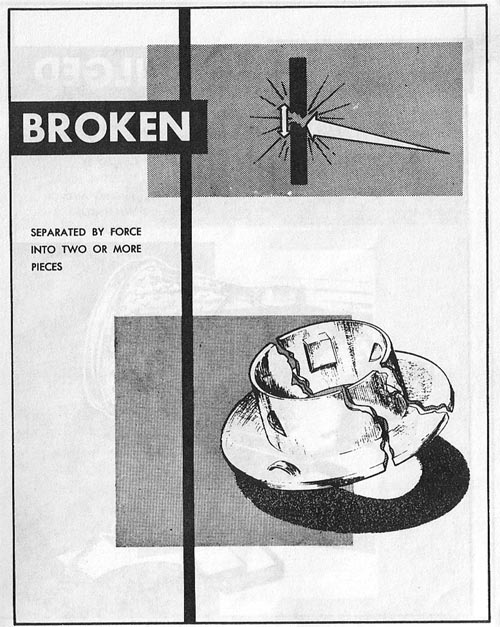

Broken:

http://www.sjap.nl/broken.jpg

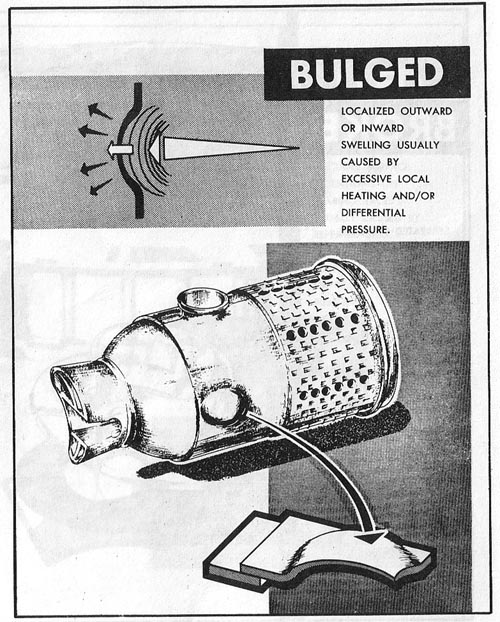

Bulged:

http://www.sjap.nl/bulged.jpg

Burned:

http://www.sjap.nl/burned.jpg

Burrs:

A rough edge or a sharp projection on the edge or surface of the parent material.

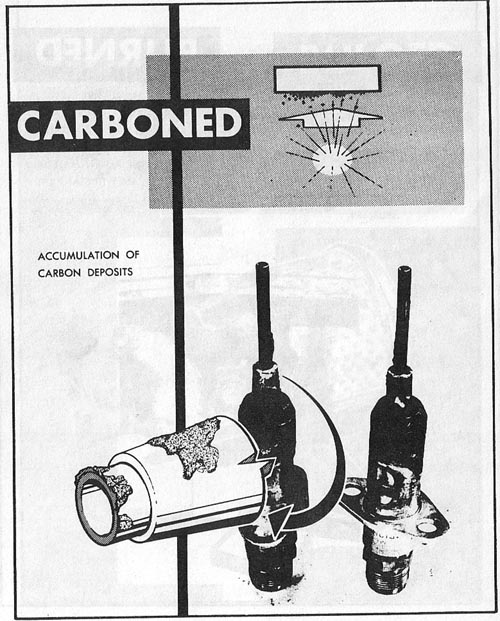

Carboned:

http://www.sjap.nl/carboned.jpg

Chafed:

Frictional wear damage usually caused by two parts rubbing together with limited motion.



Checked:

Surface cracks usually caused by heat.



Chipped:

A breaking away of the edge corner or surface of the parent material usually caused by heavy impact (not flaking).



Circuit – Grounded:

Undesired current path to ground (common).



Circuit – Open:

Incomplete electrical circuit due to separation at or between electrical connection points.



Circuit – Shorted:

Undesired current path between leads or circuits that normally are at a different potential.

Collapsed:

http://www.sjap.nl/collapsed.jpg

Corroded:

Gradual destruction of the parent material by chemical action. Often evidenced by oxide build-up on the surface of the parent material.

Cracked:

http://www.sjap.nl/cracked.jpg

Crossed:

Material damage to parts (as in the case of crossed threads) or part rendered inoperative (as in the case of crossed wires) as a result of improper assembly.

Curled:

http://www.sjap.nl/curled.jpg

Dented:

http://www.sjap.nl/dented.jpg

Deposits:

http://www.sjap.nl/deposits.jpg

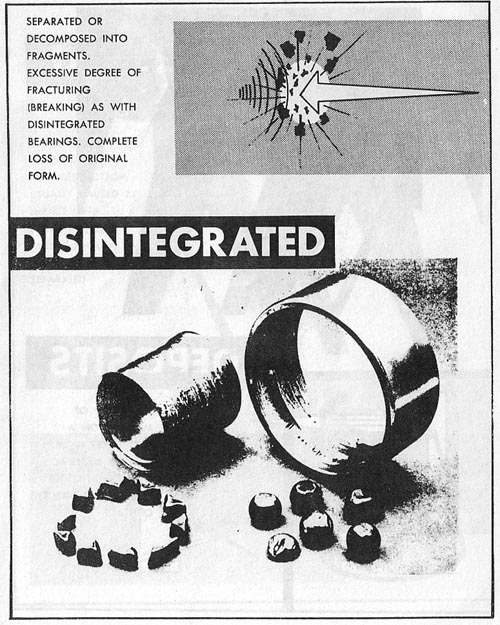

Disintegrated:

http://www.sjap.nl/disintegrated.jpg

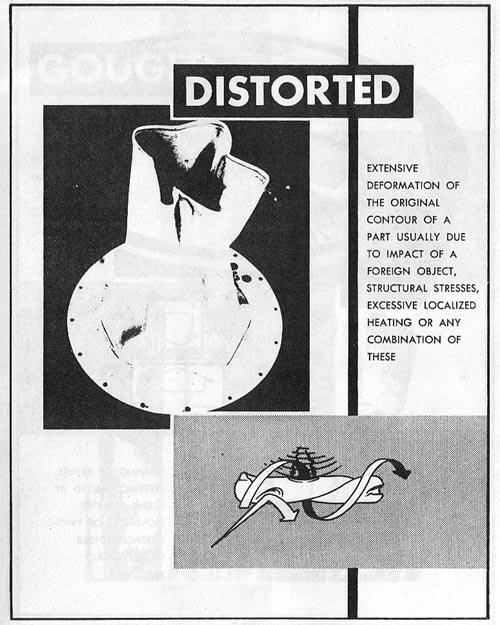

Distorted:

http://www.sjap.nl/distorted.jpg

Eccentric:

Part(s) wherein the intended common center is displaced significantly.



Eroded:

Carry away of material by flow of fluids or gases, accelerated by heat or grit.



Flattened out:

Permanent deformation beyond tolerance limits usually caused by compression.



Frayed:

Worn into shreds by rubbing action.



Fused:

Joining together of two materials usually caused by heat, friction, or current flow.

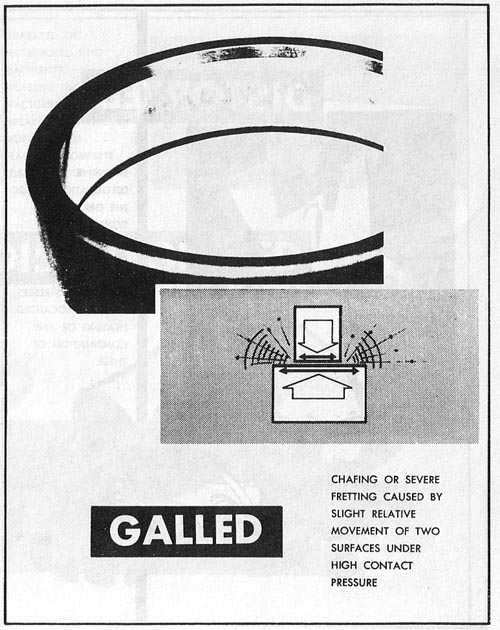

Galled:

http://www.sjap.nl/galled.jpg

Glazed:

Undesirable development of a hard, glossy surface due to rubbing action, heat or varnish.

Gouged:

http://www.sjap.nl/gouged.jpg

Grooved:

http://www.sjap.nl/grooved.jpg

Hotspot:

http://www.sjap.nl/hotspot.jpg

Indications:

Cracks, inclusions, fractures etc. not visible without fluorescent or magnetic penetrants.



Melted:

Deformation from the o-riginal configuration due to heat, friction or pres-sure as with melted bear-ings or insulation.



Mis-matched:

Improper association of two or more parts.



Mis-aligned:

Improper installation of a part resulting in damage to the installed part or to associated parts.

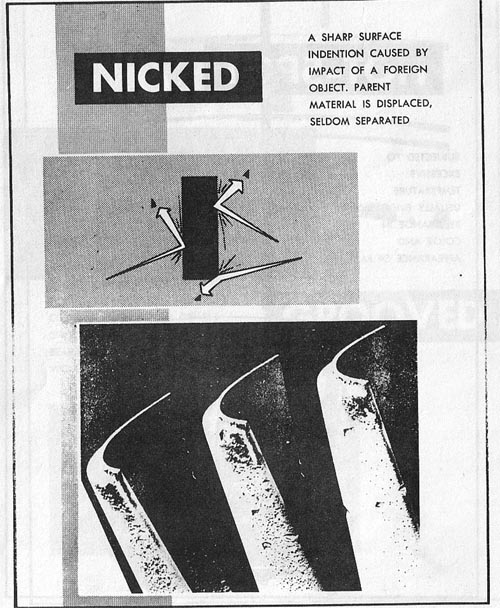

Nicked:

http://www.sjap.nl/nicked.jpg

Peeled:

http://www.sjap.nl/peeled.jpg

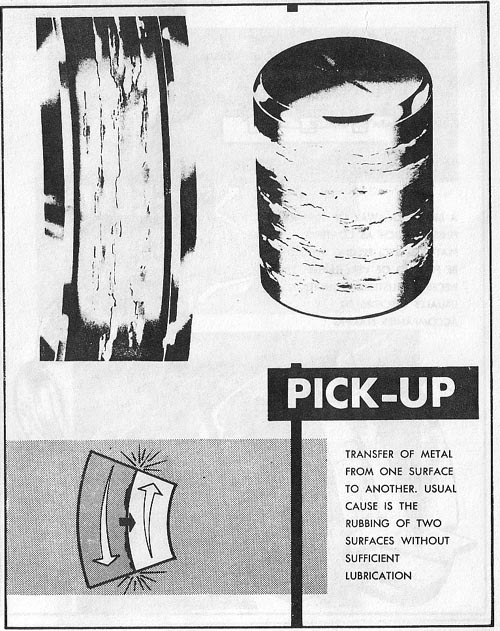

Pickup:

http://www.sjap.nl/pickup.jpg

Pitted:

http://www.sjap.nl/pitted.jpg

Plugged:

Pipe, hoses, tubing, channeling, internal passage etc. which are totally or partially blocked.

Porous:

http://www.sjap.nl/porous.jpg

Rolled-over:

http://www.sjap.nl/rolledover.jpg

Rough:

Usually applies to operation as opposed to surface finish; i.e. a condition of bearings (which cannot be disassembled further) where during the spin test the rotation is rough.



Rubbed:

To move with pressure or friction against another part such as compressor rub.

Ruptured:

http://www.sjap.nl/ruptured.jpg

Rust:

Sometimes written down  when corrosion is found. Applies only to some specific persons. If “rust” is found, no aircraft will ever leave the hangar.

Scored:

http://www.sjap.nl/scored.jpg

Scratched:

http://www.sjap.nl/scratched.jpg

Seized:

Parts bound together because of expansion or contraction due to high or low temperature, foreign object jammed in mechanism, etc.

Sheared:

http://www.sjap.nl/sheared.jpg

Spalled:

http://www.sjap.nl/spalled.jpg

Streched:

Enlargement of a part as a result of exposure to operating conditions.+



Stripped:

A condition usually associated with threads or insulation. Involves removal of material (threads) by force.

Torn:

http://www.sjap.nl/torn.jpg

Worn excessively:

Material of part consumed as a result of exposure to operation or usage, beyond the limits given by the manufacturer.



> FOR INFORMATION ONLY. UNCONTROLLED DATA !.
