Many times you will find 1 or more broken bonding jumpers under the leading edge flaps (Kreuger flaps) on the 737NG.

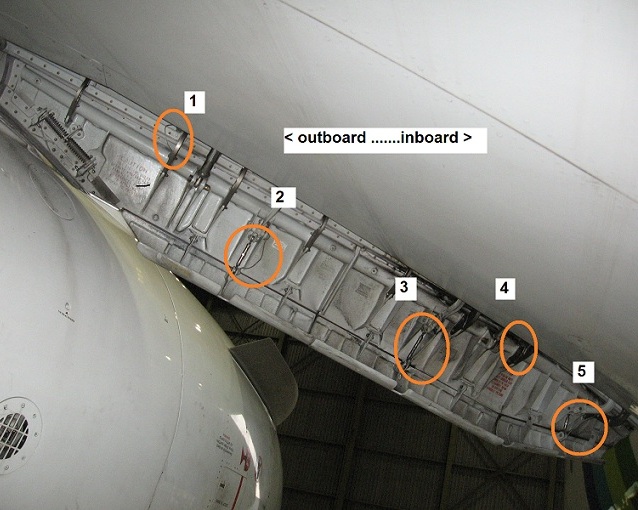

The replacement is not that much work, but it is when you try to find them in the IPC ! The total of 5 different jumpers on one wing are mentioned in 3 different IPC chapters ! Therefore a handy overview is made to help you find them very quickly. The pictures are from the LH side, for the RH side it is mirrored.
This overview is also available as a PDF file for a handy printout to keep in your pocket.
Bonding jumper(s) broken on kreuger flap(s):

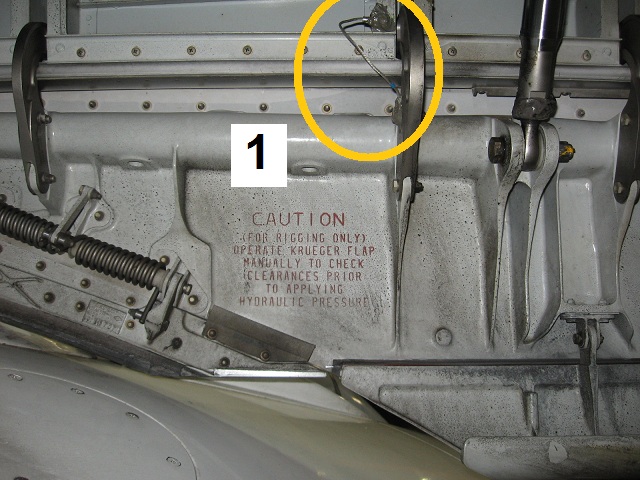

NUMBER 1:
Kreuger flap #1 or #4 at 2nd hinge from outboard:
IPC 57-42-00-06 item 32
p/n BACJ40AB26-6 ( 100226-6 )

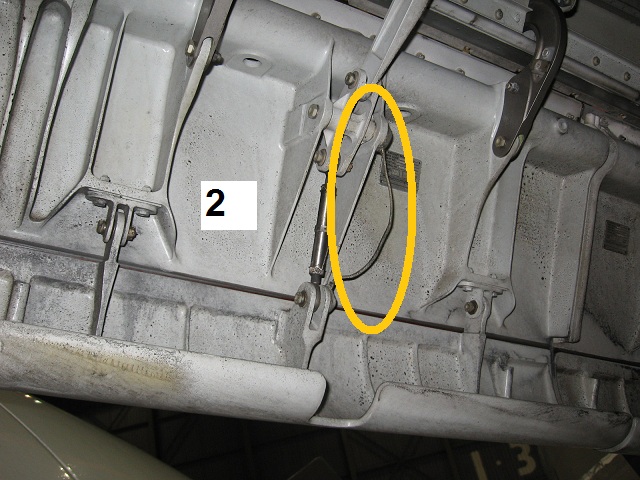

NUMBER 2:
Kreuger flap #1 or #4 on lower hinge between hinge 3 and 4 from o/b:
IPC 27-81-31-03 item 67
p/n BACJ40AB27-8 ( 940CW27-8 )

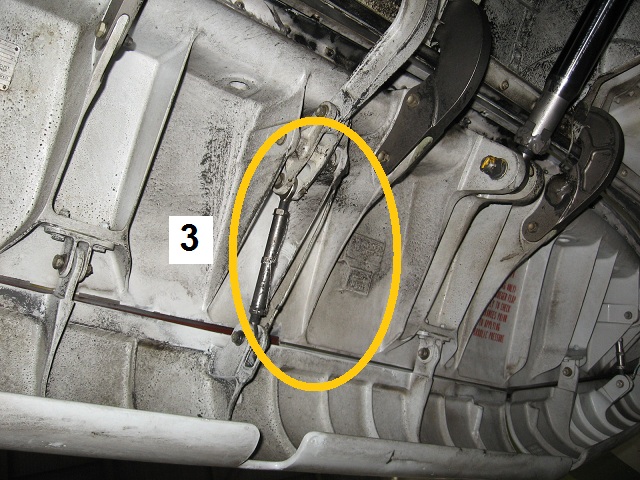

NUMBER 3:
Kreuger flap #2 or #3 on lower hinge between hinge 1 and 2 from o/b:
IPC 57-42-00-07 item 145
p/n BACJ40AB24-7 ( 100224-7 )

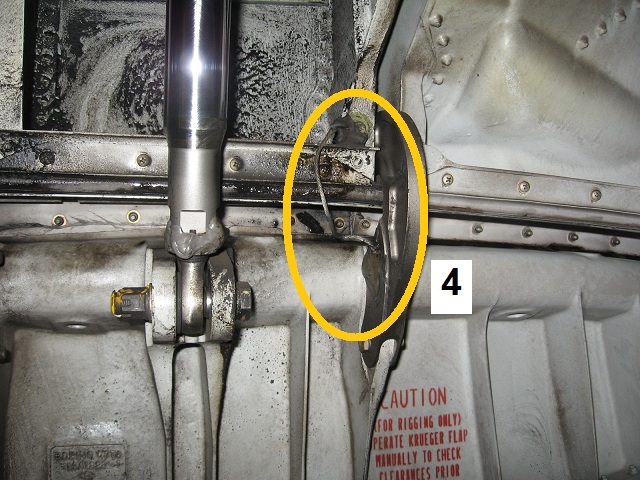

NUMBER 4:
Kreuger flap #2 or #3 at 3rd hinge from outboard:
IPC 27-81-31-04 item 73
p/n BACJ40AB27-6 ( 940CW27-6 )

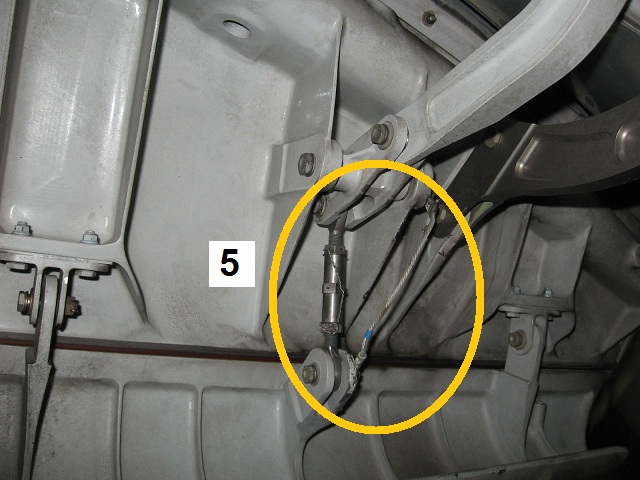

NUMBER 5:
Kreuger flap #2 or #3 on lower hinge between hinge 3 and 4 from o/b:
IPC 27-81-31-04 item 72
p/n BACJ40AB27-8 ( 940CW27-8 )
